Displays
| Cel-Scope-3D is a powerful suite of video test and measurement systems running entirely in software running on Windows. | |
|
Quality Control and monitoring software for 3D stereoscopic television |
|
|

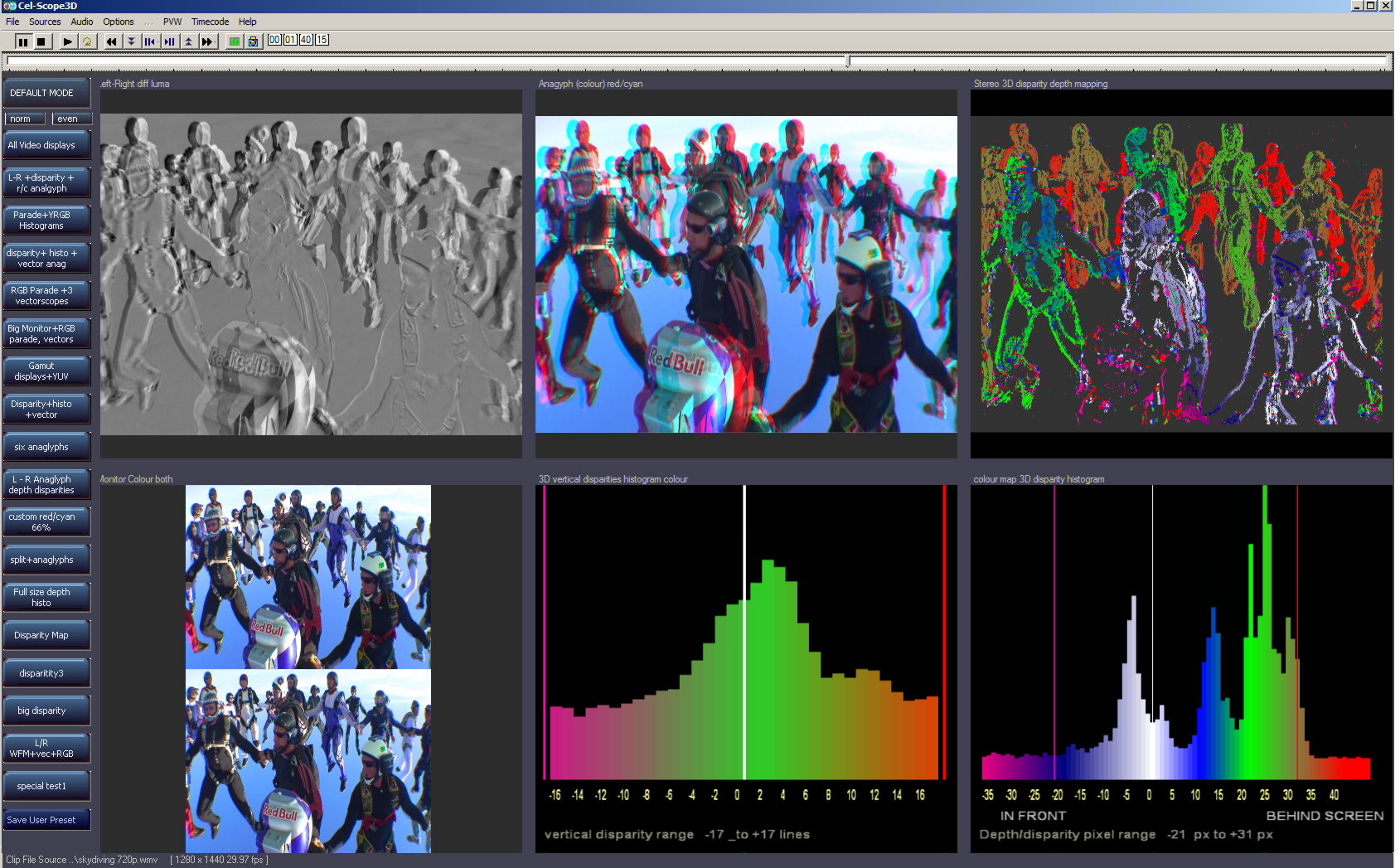

Just a few example displays - each can be customised by the user in any required arrangement and size. Cel-Scope3D has over 50 different display modes and you can set any configuration into Preset buttons down the left side on the main screen for instant recall. Depth Budget and Vertical Disparities, Left - Right and Anaglyph
Side-by-Side picture monitor with combined vectors and luma waveform |
|
|
Depth Spectrogram shows full depth dynamics on any time scale from seconds to hours
|
|
|

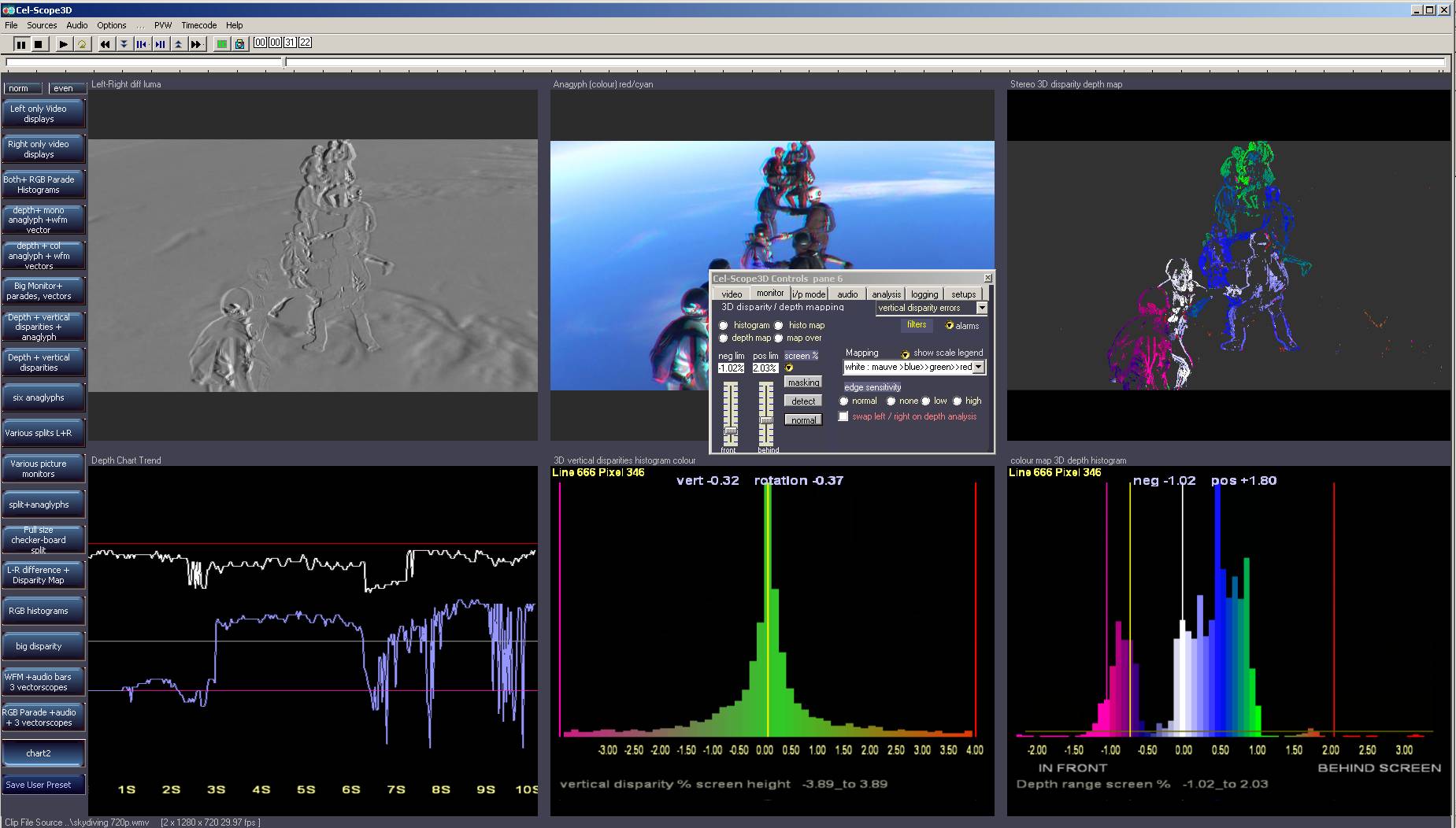

Depth Chart and Vertical Disparities, Left - Right and Anaglyph

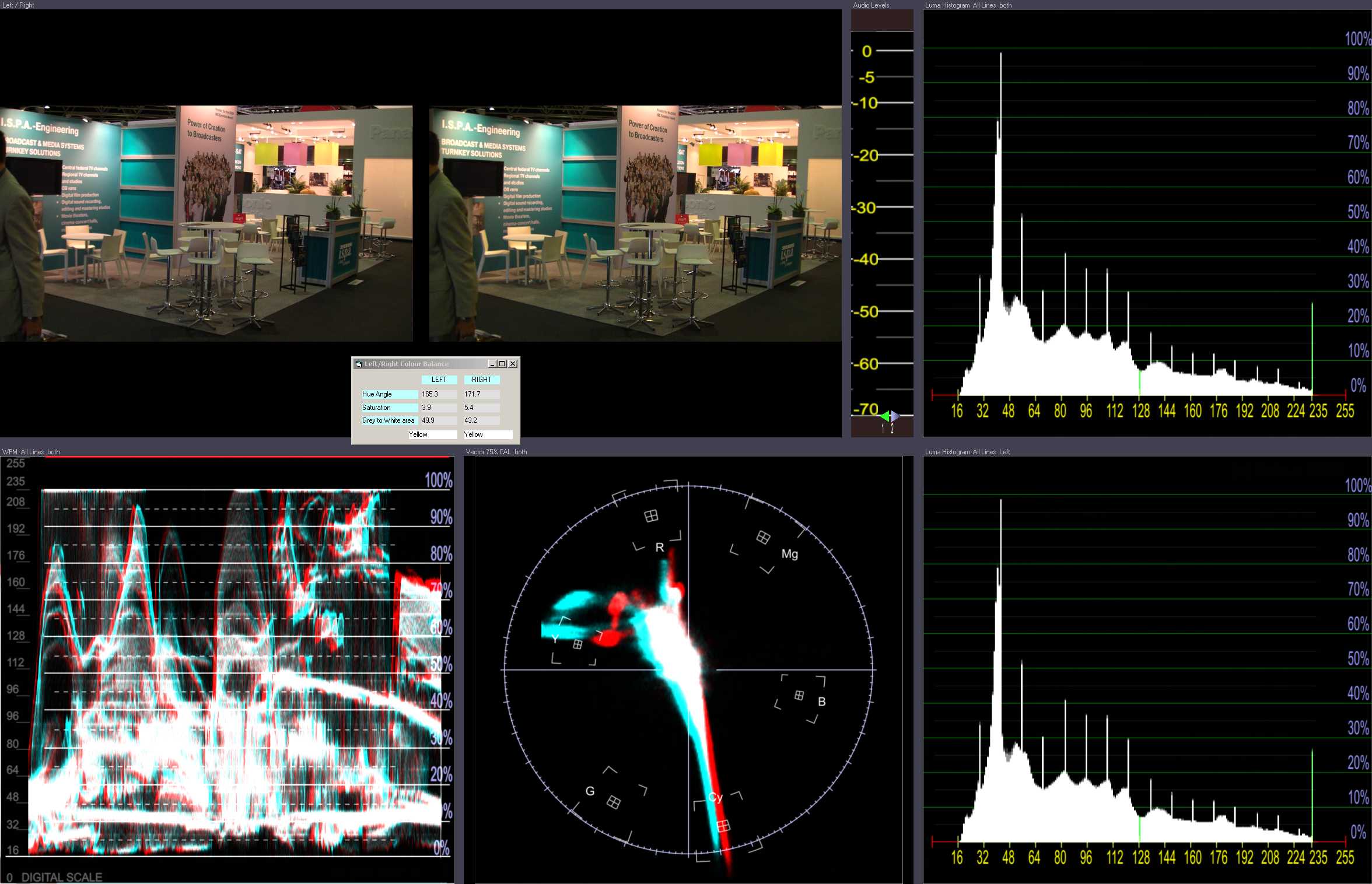

Side-by-Side picture monitor with combined vectors and luma waveform |
|
 |

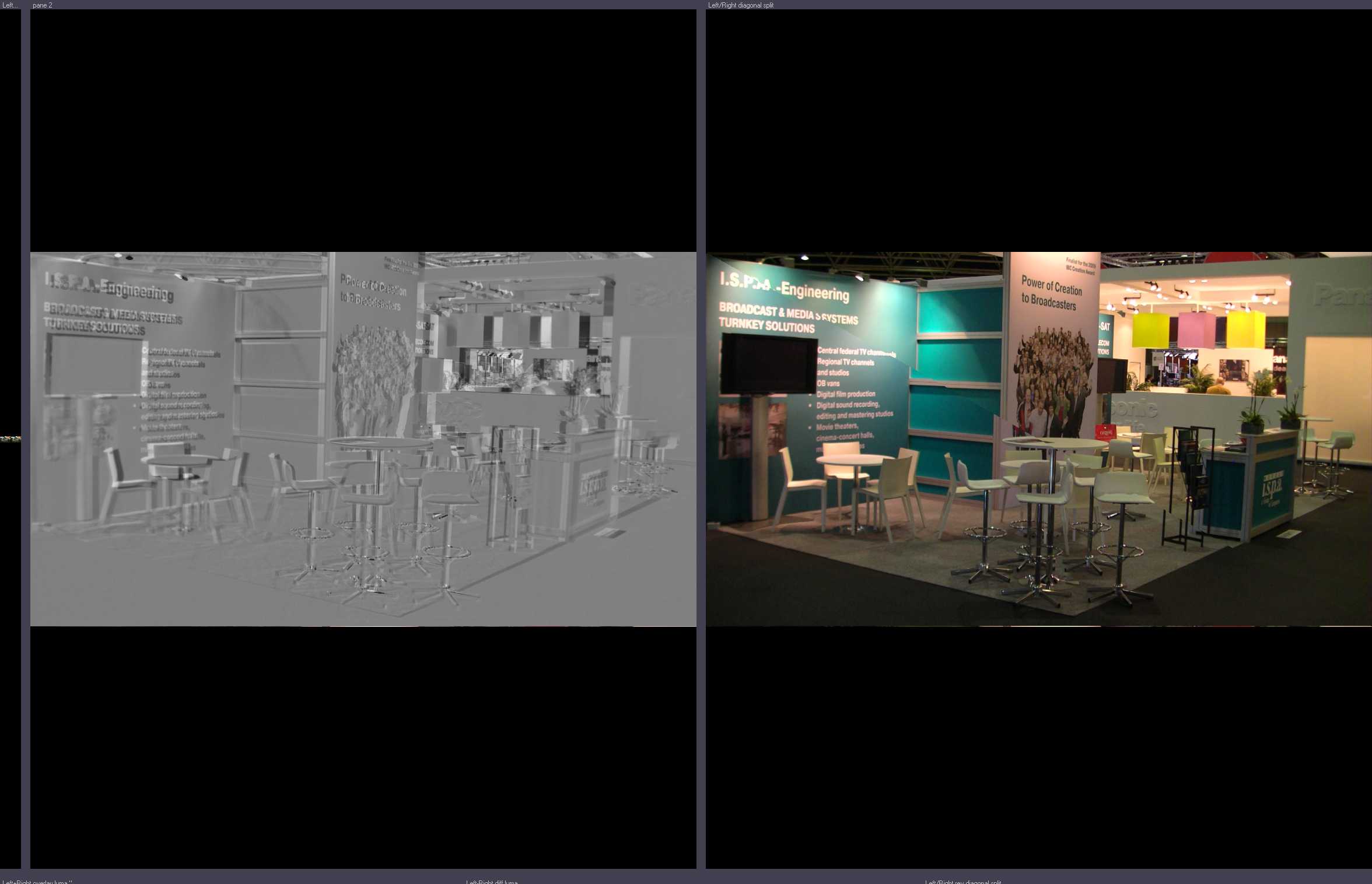

Left / Right difference in luma only with red/cyan anaglyph

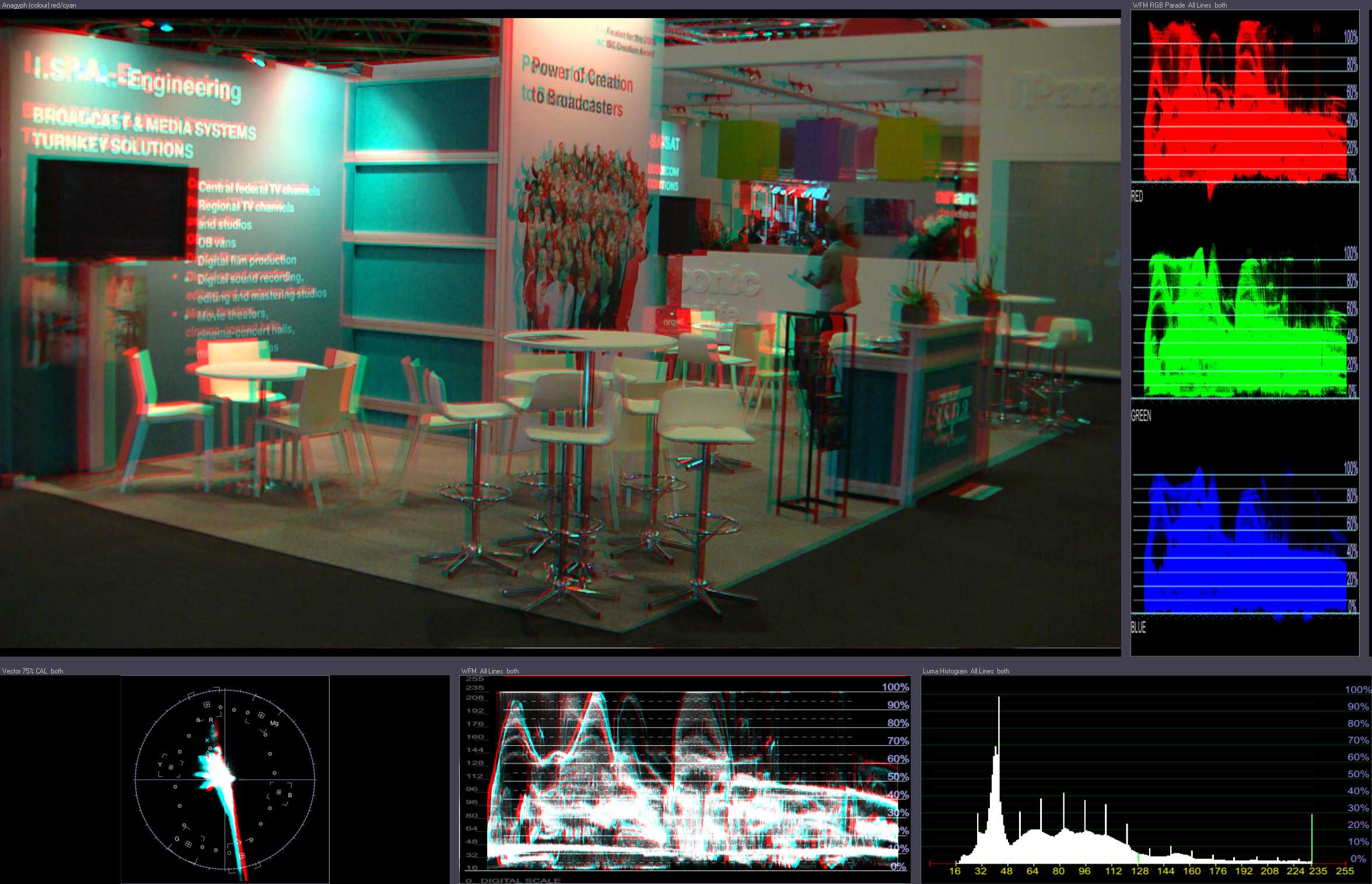

red/cyan anaglyph with RGB parade and combined vectors, waveform and histogram

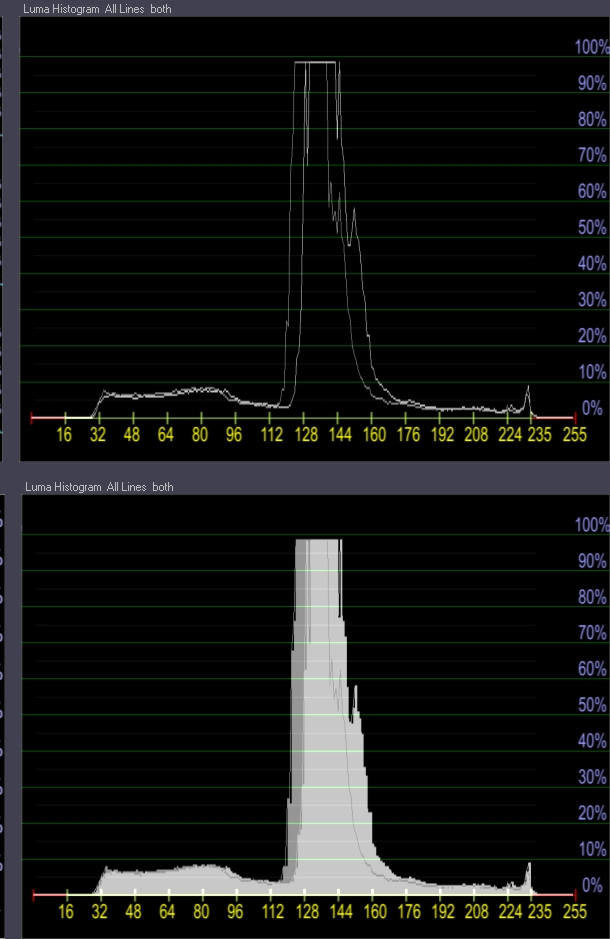

Histograms (enlarged) Outline or Solid ,left and right
